Frameless motors from the ILM and ILM-E series

Our range of stator-rotor servo kits

Frameless, hollow-shaft servo motors from TQ-RoboDrive utilize the original stator-rotor kit technology specially developed by the German Aerospace Center for use aboard the International Space Station.

Thanks to their high copper-fill factor and innovative stator-rotor design, these frameless motors offer superior torque density, exceptionally low losses and highly dynamic performance, while also affording excellent heat dissipation. They may be used as direct drives and can be customized on request.

TQ-RoboDrive's frameless servo motors are ideal for designers who want to push the limits of performance in robotics, medical technology, aerospace, industrial automation, laser tracking/optics and other technically demanding applications.

Frameless Motor ILM50

ILM series

• Highest torque
• Highest quality
• Potted stator
• Stator diameter available in 25, 38, 50, 70, 85, 115 [mm]
• is glued into the housing

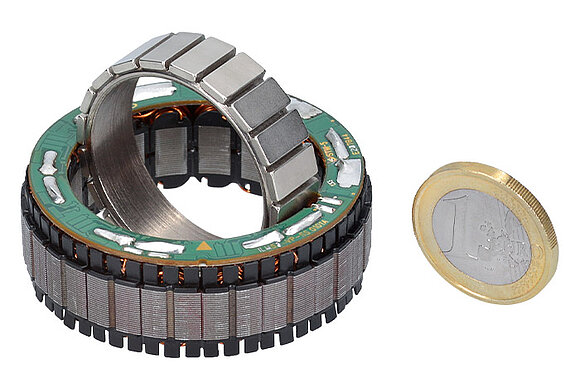

ilm-e50x08

ILM-E series

• High torque
• Attractive price/performance
• Non-cast stator
• Stator diameter available in 50, 70, 85 [mm]
• is shrink-wrapped in housing

Hands with torque motor

Free Design Check

Our application team supports you from motor selection through the design-in phase to seamless integration.

Mehr dazu


Product selection of our frameless motors

Products
×
Servo-Kits ILM-E50x08 - 215 W | 0.32 Nm | 6422 rpm | 48 V

Servo-Kits ILM-E50x08

215 W | 0.32 Nm | 6422 rpm | 48 V


×
Servo-Kits ILM-E50x14 - 209 W | 0.53 Nm | 3768 rpm | 48 V

Servo-Kits ILM-E50x14

209 W | 0.53 Nm | 3768 rpm | 48 V


×
Servo-Kits ILM-E70x10 - 231 W | 0.62 Nm | 3556 rpm | 48 V

Servo-Kits ILM-E70x10

231 W | 0.62 Nm | 3556 rpm | 48 V


×
Servo-Kits ILM-E70x18 - 253 W | 1.21 Nm | 2000 rpm | 48 V

Servo-Kits ILM-E70x18

253 W | 1.21 Nm | 2000 rpm | 48 V


×
Servo-Kits ILM-E85x13 - 404 W | 1.37 Nm | 2811 rpm | 48 V

Servo-Kits ILM-E85x13

404 W | 1.37 Nm | 2811 rpm | 48 V


×
Servo-Kits ILM-E85x23 - 433 W | 2.6 Nm | 1606 rpm | 48 V

Servo-Kits ILM-E85x23

433 W | 2.6 Nm | 1606 rpm | 48 V


×
Servo-Kits ILM-E85x26 - 436 W | 2.84 Nm | 1464 rpm | 48 V

Servo-Kits ILM-E85x26

436 W | 2.84 Nm | 1464 rpm | 48 V


×
Servo-Kits ILM-E85x30 - 444 W | 3.3 Nm | 1286 rpm | 48 V

Servo-Kits ILM-E85x30

444 W | 3.3 Nm | 1286 rpm | 48 V


×
Servo-Kits ILM25x04 - 77 W | 0.033 Nm | 22378 rpm | 24 V

Servo-Kits ILM25x04

77 W | 0.033 Nm | 22378 rpm | 24 V


×
Servo-Kits ILM25x08 - 89 W | 0.063 Nm | 13492 rpm | 24 V

Servo-Kits ILM25x08

89 W | 0.063 Nm | 13492 rpm | 24 V


×
Servo-Kits ILM25x18 - 95.7 W | 0.145 Nm | 6288 rpm | 24 V

Servo-Kits ILM25x18

95.7 W | 0.145 Nm | 6288 rpm | 24 V


×
Servo kits ILM38x06 - 110 W | 0.099 Nm | 10575 rpm | 24 V

Servo kits ILM38x06

110 W | 0.099 Nm | 10575 rpm | 24 V


×
Servo-Kits ILM38x12 - 248 W | 0.234 Nm | 10190 rpm | 48 V

Servo-Kits ILM38x12

248 W | 0.234 Nm | 10190 rpm | 48 V


×
Servo kits ILM50x08 - 209 W | 0.298 Nm | 6710 rpm | 48 V

Servo kits ILM50x08

209 W | 0.298 Nm | 6710 rpm | 48 V


×
Servo kits ILM50x14 - 219 W | 0.54 Nm | 3849 rpm | 48 V

Servo kits ILM50x14

219 W | 0.54 Nm | 3849 rpm | 48 V


×
Servo kits ILM70x10 - 250 W | 0.66 Nm | 3650 rpm | 48 V

Servo kits ILM70x10

250 W | 0.66 Nm | 3650 rpm | 48 V


×
Servo kits ILM70x18 - 277 W | 1.25 Nm | 2110 rpm | 48 V

Servo kits ILM70x18

277 W | 1.25 Nm | 2110 rpm | 48 V


×
Servo kits ILM85x04 - 284 W | 0.30 Nm | 7900* rpm | 48 V

Servo kits ILM85x04

284 W | 0.30 Nm | 7900* rpm | 48 V


×
Servo kits ILM85x13 - 443 W | 1.44 Nm | 2938 rpm | 48 V

Servo kits ILM85x13

443 W | 1.44 Nm | 2938 rpm | 48 V


×
Servo kits ILM85x23 - 465 W | 2.57 Nm | 1728 rpm | 48 V

Servo kits ILM85x23

465 W | 2.57 Nm | 1728 rpm | 48 V


×
Servo kits ILM85x26 - 470 W | 2.9 Nm | 1560 rpm | 48 V

Servo kits ILM85x26

470 W | 2.9 Nm | 1560 rpm | 48 V


×
Servo-Kits ILM115x25 - 570 W | 3.9 Nm | 1400 rpm | 48 V

Servo-Kits ILM115x25

570 W | 3.9 Nm | 1400 rpm | 48 V



Show more

No entries were found for your selection.
Please select another combination.

Hand mit Servomotor

Shop – Fast, Convenient, Reliable

Find the right frameless servo motors for your prototype. Order conveniently online, and receive your delivery within a maximum of two weeks.

Go to Shop

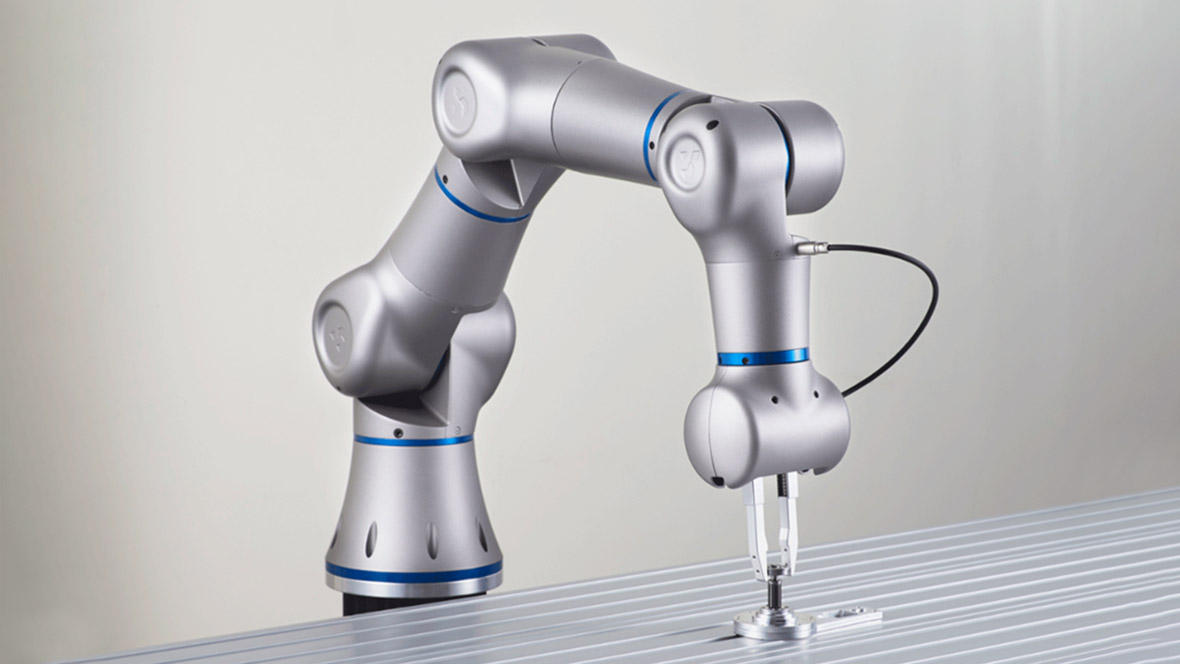

Tokyo Robotics Torobo Arm

For advanced applications

TQ-RoboDrive frameless motors, sensors and brakes help engineers overcome technical challenges in demanding applications in robotics, aerospace, medical technology, optics and more.

Case study videos

TQ-RoboDrive - Developed for use in space

Born in space

Frameless servo kits from TQ-RoboDrive utilize the original stator-rotor kit technology specially developed by the German Aerospace Center for use aboard the International Space Station.

Discover our origins


Request more info

Do you have questions about TQ-RoboDrive, our products or services? We are looking forward to your inquiry and will respond quickly. Here's an overview of how to reach us.

Contact us


Download data sheets

Are you looking for data sheets with comprehensive details and product configurations? Would you like to receive our complete product catalog?

Download data sheets
