x86 Highlights

Latest Intel® technology for embedded applications

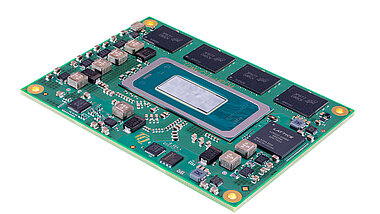

COM-HPC® Mini

Intel® Core™ Ultra Processors ("Meteor Lake-U/H")

TQMxCU1-HPCM

for high demanding graphics and AI-intensive workloads with best power-efficiency at small size



COM Express® Compact

13th Gen Intel® Core™ Processor Family ("Raptor Lake-P")

TQMx130UC / TQMx130PC / TQMx130HC

Compact and versatile in every performance class (15 W / 28 W / 45 W) with real-time support and best fit for industrial use conditions

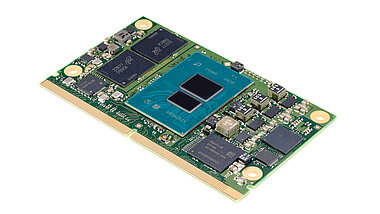

SMARC®

Intel Atom® x7000E, Intel Atom® x7000RE, Intel® Core™ i3-N305 and Intel® Processor N-series ("Alder Lake-N" + "Amston Lake")

TQMxE41S

Cost-efficient high-performance computing in credit card size with only 5-15 W

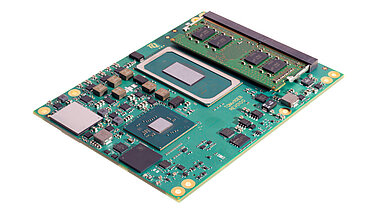

COM Express® Basic

11th Gen Intel® Core™ Processor Family (2-chip) ("Tiger Lake-H")

TQMx110EB

for IO-intensive applications with up to 24 PCIe lanes and PCIe x16 support



Flexible on various form factors

Intel Atom® x6000E ("Elkhart Lake")

TQMxE40S / TQMxE40M / TQMxE40C1 / TQMxE40C2

Low-power x86 with industrial interfaces like CAN



x86 Highlights

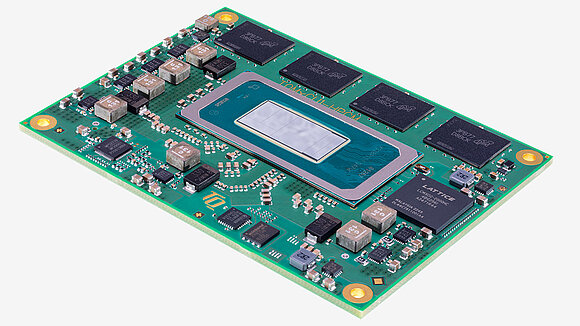

TQMxCU1-HPCM: Optimally tuned - latest processor technology in a new form factor

Intel® Core™ Ultra processors ("Meteor Lake-U/H") offer impressive graphics and AI performance in combination with the latest Intel hybrid technology for innovative edge applications. Unlock the potential: In conjunction with the new COM-HPC® Mini standard, the numerous high-speed interfaces can be optimally utilized.

  • Intel® Core™ Ultra 5 and Intel® Core™ Ultra 7 in 15 W "Ultra-Low-Power" or 28 W "High-Performance" version
  • 400-pin high-speed connector with future-proof pinout for USB 4 / USB-C, PCIe Gen5 and ultra-high-resolution display outputs
  • Extremely compact with space savings of 26% compared to COM Express® Compact and 41% compared to COM-HPC® Client (size A)

TQMxCU1-HPCM

For full specification, visit TQMxCU1-HPCM product page

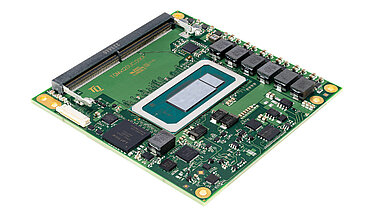

TQMx130 family with 3 power classes for industrial use

13th generation Intel® Core™ i processors ("Raptor Lake-P") in the compact and proven COM Express® form factor.

A perfect fit for industrial applications incl. real-time support based on Intel TCC (Time Coordinated Computing) and TSN (Time Sensitive Network).

One design - numerous possibilities.

The COM Express® Compact-based module family offers high flexibility in terms of performance and power demand:

Three power levels with a total of 20 processor variants are available to choose from - from Intel® processor U300, Intel® Core™ i3 and Intel® Core™ i5 to Intel® Core™ i7.

  • Impressive multi-thread/multi-tasking performance and high energy efficiency thanks to Intel® Hybrid Technology, a combination of performance cores and efficient cores
  • AI boost thanks to new Intel® UHD / Iris Xe graphics and new instruction sets for optimized inference and deep learning applications
  • Consistently high system performance including fast DDR5 memory
  • Also available in the extended temperature range and with industrial use conditions for 24/7 operation

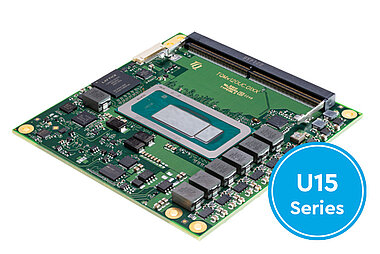

U15 Ultra-Low-Power series with 12/15/28 W TDP*

Up to 2 Performance Cores
+ 8 Efficient Cores
+ 96 GPU Execution Units
Incl. very cost-optimized entry class versions



P28 Performance series with 20/28 W TDP*

Up to 6 Performance Cores
+ 8 Efficient Cores
+ 96 GPU Execution Units
Extended graphics capabilities and four independent display outputs



H45 High-Performance series with 35/45 W TDP*

Up to 6 Performance Cores
+ 8 Efficient Cores
+ 96 GPU Execution Units
Extended graphics capabilities and four independent display outputs
Up to 24 MB cache
Additional PCIe Gen4 lanes



*TDP: Thermal Design Power. Values for CPU according to manufacturer Intel®. Configurable.

Latest Intel technology in the low-power segment

With the SMARC compliant module TQMxE41S, TQ supports the "Alder Lake-N" and "Amston Lake" processor families with Intel Atom® processors x7000E & x7000RE series for IoT applications, Intel® Core™ i3-N305 and Intel® Processor N-series. Thus, users can benefit from the latest technology also in the low-power segment (5 W - 15 W):

  • Up to 8 efficient cores
    and extremely powerful graphics with AI boost (both known from the 12th/13th generation Intel® Core™ processors)
  • High-speed interfaces
    such as 2x 2.5 Gigabit Ethernet, USB 3.2, PCIe and three ultra-high-resolution display interfaces
  • Particularly small dimensions
    with only 82 mm x 50 mm
  • Industrial use conditions and Extended Temperature
    help ensure high uptime in harsh environments
  • With real-time support
    for latency-bounded workloads in use cases such as robotics

TQMxE41S

For full specification, visit TQMxE41S product page


TQMxE41S

High-performance computing with PCIe x16 support and high reliability even under particularly extreme operating conditions

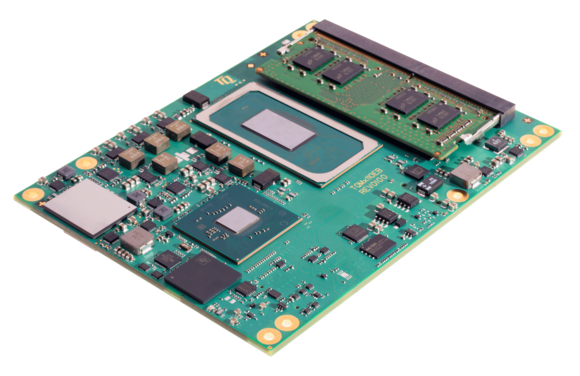

The COM Express® Basic Module TQMx110EB with 11th generation Intel® Core™ and Intel® Xeon® processors (Tiger Lake-H) offers optimal possibilities for extensions and high-speed peripherals with its comprehensive feature set of high-speed interfaces.

Prepared for all operating conditions:

  • Intel® Core processors
    for embedded applications in the standard temperature range
  • Intel® Xeon® processors "MRE"
    with real-time support, ECC support and even in the industrial temperature range suitable for 24/7 continuous use under load.
  • Intel® Xeon® Processors "MLE"
    Particularly economical with only 25 W TDP, real-time support, ECC support and 24/7 operating conditions.

TQMx110EB

For full specification, visit TQMx110EB product page


TQMx110EB

Intel Atom® x6000E family ("Elkhart Lake") for industrial use

In order to be able to optimally cover the diverse application possibilities of the latest Intel Atom® family with extended temperature range, TQ provides no less than 4 different embedded modules on the established form factors SMARC, COM Express Mini and COM Express Compact.

The processor selection ranges from Intel® Celeron® (N/J) and Intel® Pentium® (N/J) to dual and quad core Intel Atom® processors.

TQMxE40S

SMARC 2.1 Modul with Intel Atom® x6000 Series, Pentium® and Celeron® Processors of 6th Generation ("Elkhart Lake")



TQMxE40M

COM Express® Mini Modul (Typ 10) with Intel Atom® x6000 Series, Pentium® and Celeron® Processors of 6th Generation ("Elkhart Lake")



TQMxE40C1

COM Express® Compact Module (Typ 6) with Intel Atom® x6000 Series, Pentium® and Celeron® Processors of 6th Generation ("Elkhart Lake")



TQMxE40C2

COM Express® Compact Module (Typ 6) with Intel Atom® x6000 Series, Pentium® and Celeron® Processors of 6th Generation ("Elkhart Lake")



Whitepaper

A detailed overview of the "features & improvements" of the new Intel Atom® x6000E Series processor family and how to use can be found in our white paper.


3265,64,67,17

Our USPs

  • Unbeatable long-term availability
  • Robustness for all applications
  • The most comprehensive range of modules on the market
  • A comprehensive design and support of an E²MS manufacturer
  • Full design freedom, as all processor functions are fully accessible
  • x86 for tough industrial use
