"Elkhart Lake" Platform - The brand new Intel Atom® Generation x6000E x86 Embedded Technology on SMARC, COM Express Mini and COM Express Compact

With the latest 6th generation Intel Atom® x6000E Series and Intel® Pentium® and Celeron® N and J Series processors (code named Elkhart Lake / EHL) Intel® delivers for the first time the powerful and super economical 10 nm technology for x86 entry-level, low-power embedded/IoT applications.

With the embedded computing modules of the TQMxE40 family from TQ, you can easily, quickly and efficiently integrate the latest technology updates and the enormous performance increase in CPU, graphics, memory and interfaces into your applications. With this COM (Computer-on-Module) or SoM (System-on-Module) approach, CPU integration and system design can be optimally parallelized, thereby optimizing effort and time-to-market.

The most important highlights of the new processor generation at a glance:

More details:

  • Dual- and Quad-Core versions with up to 3 GHz
  • Single-Chip package with 10 nm compute die (CPU. memory, graphics) and 14 nm IOTG peripheral controller hub (PCH) for IO
  • additional 4 MB LLC cache
  • Excellent 3D graphics support with DirectX 12, OpenGL 4.5, OpenGL-ES 3.2 and Vulkan 1.1
  • Powerful hardware codecs (MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), VP9)

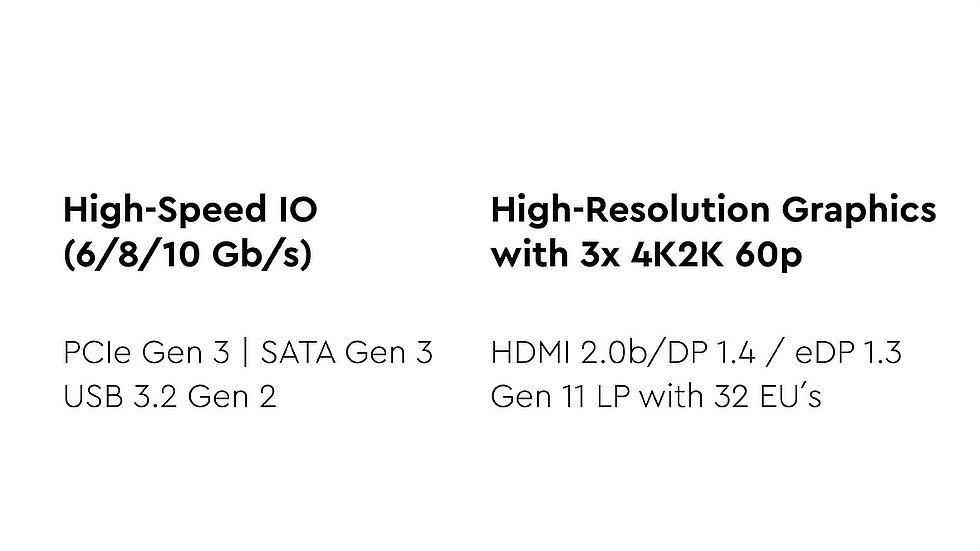

  • Advanced IO interfaces (12 high-speed lanes for PCIe/ETH/USB/SATA, CAN, eSPI, ...)
  • Extended security functions
  • Improved hardware-supported virtualization (Intel® VT-d, Intel® VT-x)
  • Intel® Programmable Service Engine (ARM™ Cortex™ M7 Co-Processor)

Different versions for different areas of application:

PC Like

  • Field of application/special features:
    PC typical applications with long-term availability
  • CPU type*:
    Intel® Celeron® N6xxx/J6xxx, Intel® Pentium® N6xxx/J6xxx

Embedded

  • Field of application/special features:
    High Reliability, Turbo-Mode, Extended Temperature
  • CPU type*:
    Intel Atom® x62xxE, Intel Atom® x64xxE

Industrial

  • Field of application/special features:
    24/7-Operation, Realtime-Support, Extended Temperature
  • CPU type*:
    Intel Atom® x62xxRE, Intel Atom® x64xxRE

FuSA

  • Field of application/special features:
    Functional Safety, Extended Temperature
  • CPU type*:
    Intel Atom® x62xxFE, Intel Atom® x64xxFE

Dual- and Quad-Core versions are available for all applications.

Applications range from industrial automation, medical technology, test & measurement, robotics, image processing, visualization and artificial intelligence (AI) to transportation and logistics. With the extended temperature range, continuous operation under harsh environmental conditions is also possible without restrictions. Due to the low power consumption (Thermal Design Power is between 4.5 and 12 W), battery powered mobile applications are also well covered. The long-term availability of at least 15 years provides design and planning security.

Industry 4.0 and real-time sensitive Industrial IoT applications are addressed by the distinct real-time features. These include the TSN support of network interfaces, but also the Intel® Time Coordinated Computing (Intel® TCC) extensions, which enable reliable deterministics to be ensured consistently within the processor but also via interfaces such as PCIe. The integrated ARM™ Cortex™ M7-based Intel® Programmable Service Engine (Intel® PSE) reduces the load on the CPU and takes over important functions for real-time and IO.

Security aspects are supported by the integrated security co-processor, the so-called Intel® Converged Security Engine (Intel® CSE), and TPM support. Intel® Virtualization Technology (Intel® VT) also enables the secure separation of different functions and operating systems that are running simultaneously on the processor.

In order to optimally cover the diverse areas of application, TQ provides embedded CPU modules (Computer on Modules) in various form factors and designs:

All form factors and designs

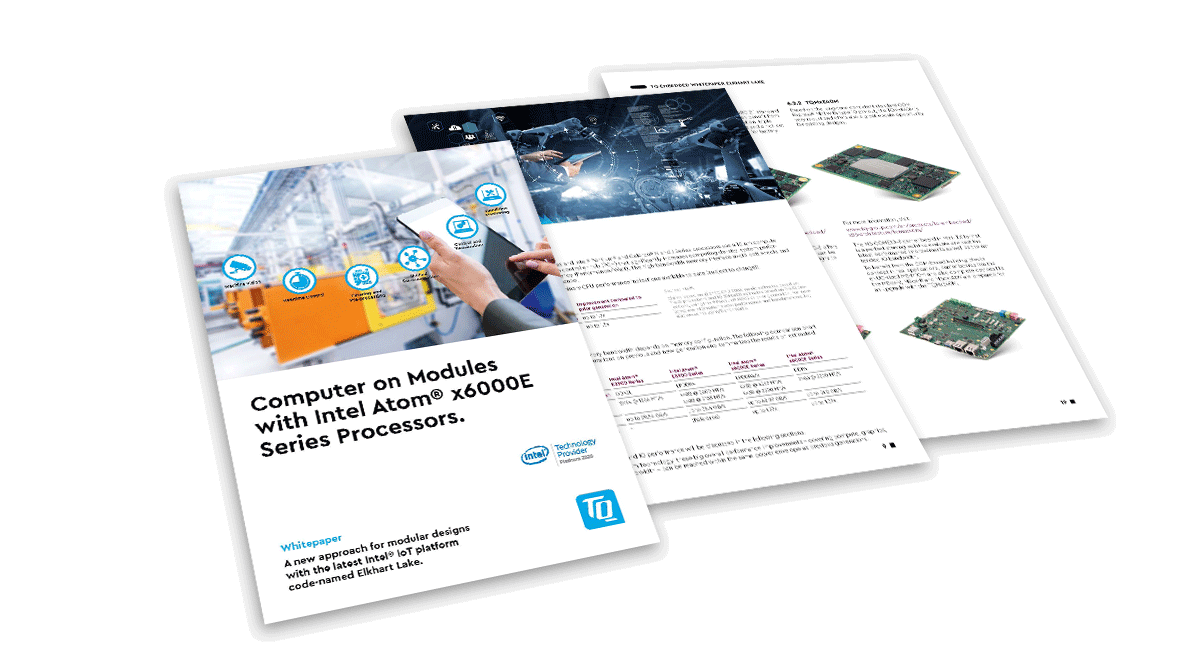

Download the complete overview as PDF here.



Further details can be found on the product pages:

TQMxE40S

SMARC 2.1 Modul with Intel Atom® x6000 Series, Pentium® and Celeron® Processors of 6th Generation ("Elkhart Lake")



TQMxE40M

COM Express® Mini Modul (Typ 10) with Intel Atom® x6000 Series, Pentium® and Celeron® Processors of 6th Generation ("Elkhart Lake")



TQMxE40C1

COM Express® Compact Module (Typ 6) with Intel Atom® x6000 Series, Pentium® and Celeron® Processors of 6th Generation ("Elkhart Lake")



TQMxE40C2

COM Express® Compact Module (Typ 6) with Intel Atom® x6000 Series, Pentium® and Celeron® Processors of 6th Generation ("Elkhart Lake")



For a quick start and to test the full functionality of the modules, we provide evaluation platforms:

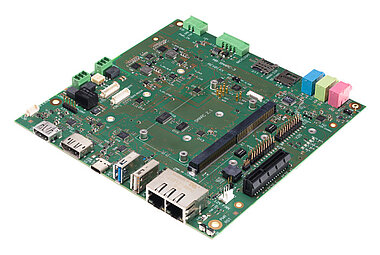

MB-SMARC-3

Mini-ITX Carrier Board for SMARC 2.0/2.1 Modules.

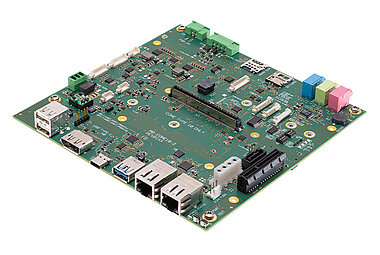

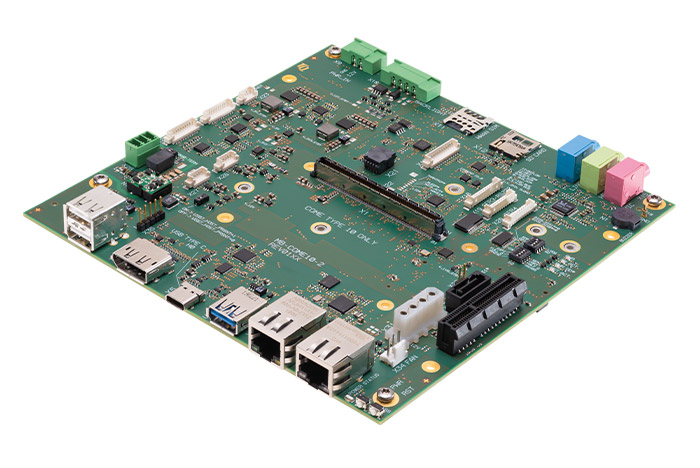

MB-COME10-2

Mini-ITX Carrier Board for COM Express® Type 10 Mini Modules.

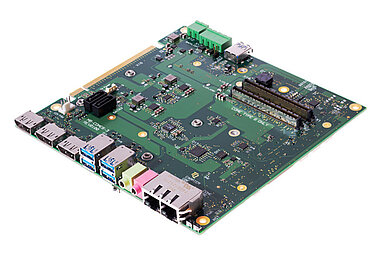

MB-COME6-3

for COM Express Type 6 (Compact+Basic)



Contact us

Do you have any questions or are you looking for further support in selecting the right module or in designing carrier boards and systems?
Then please contact us. Our experts are at your disposal.



*These processor numbers are covered:

  • J6000 (J6413, J6425)
  • N6000 (N6211, N6415)
  • x6000/x6000E (x6211E, x6413E, x6425E, x6212RE, x6414RE, x6425RE, x6200FE, x6427FE)
3265,64,67,17
