MBox-Advanced: The robust BoxPC
The MBox-Advanced is a compact embedded box PC for demanding embedded applications. It is suitable both as a standard embedded box PC and as an industrial firewall and security appliance. The platform used is the Intel Atom processor series E3900 (Apollo Lake I), combined with Intel i210 Ethernet controllers for high data throughput in a compact form factor.
Highlights that make the difference in the project
- Intel Atom® E3900 processors
- 4 independent Gigabit Ethernet interfaces, TSN capable
- DP++ output for high-resolution monitors
- AES NI support, TPM 1.2 or 2.0 optional
- Extended temperature support optional
- Very compact design, passively cooled without fan
- Customized configurations and ODM branding
- Special version with 2.5 inch SSD slot available
- Quality Made in Germany
More technical specifications can be found in the Data sheet.
What applications is the MBox-Advanced intended for?
The MBox-Advanced is designed for industrial applications with high reliability and is designed for an extended service life of more than 10 years.

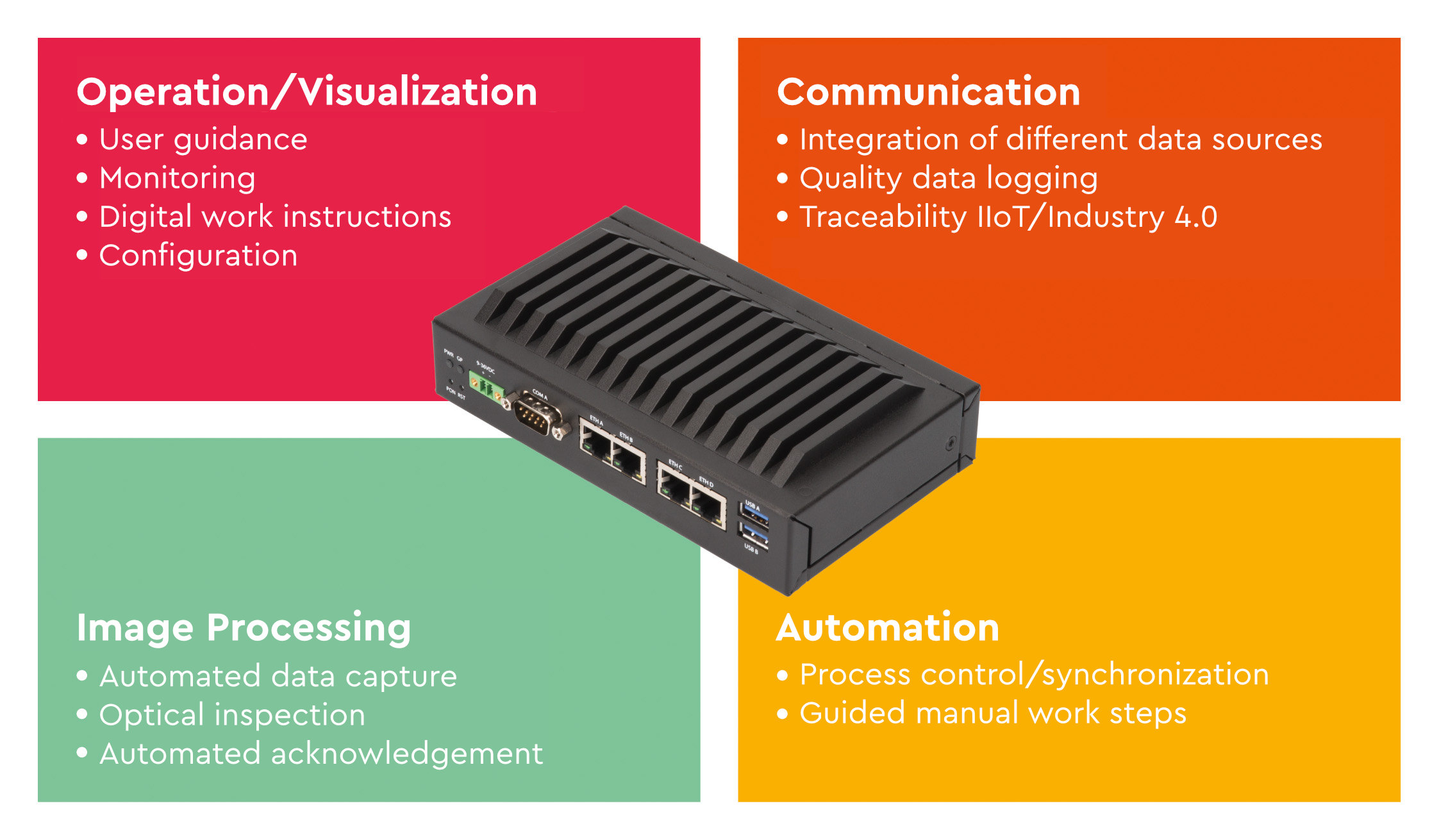

Typical applications at a glance:
- Industrial automation, for example process control, optical inspection, multi-network gateway, user guidance and monitoring
- Robotics, for example automation of processes and HMI
- Measurement technology, for example network analysis
- Network infrastructure and IoT, for example multi-network gateway and multi-network firewall
How to buy the right variant
To find the right MBox-Advanced without any detours, three decisions are usually enough.
FAQs on the MBox-Advanced
Is the MBox-Advanced more of a boxpc or a security appliance?
Both. The MBox-Advanced can be used as a standard embedded PC and is also suitable for industrial firewall and security appliance scenarios.
How many Ethernet ports does the MBox-Advanced offer?
The platform offers 4 independent Gigabit Ethernet interfaces and uses Intel i210 controllers.
What security functions are available?
AES NI support is provided, TPM 1.2 or TPM 2.0 is optional.
How is the MBox Advanced installed?
The MBox Advanced can be mounted flexibly - either as a desktop version, via a VESA75 mount or on a DIN rail using a suitable adapter kit.
What power supply is required?
The MBox Advanced can be operated with 9 to 36 volts.
What storage options does the MBox-Advanced support?
The MBox Advanced is available with soldered DDR3L RAM (2, 4 or 8 GB) and supports eMMC as mass storage (up to 128 GB). An M.2 slot (Key B+M) is also provided, which supports SATA and USB.
What display output does the MBox-Advanced offer?
A DisplayPort with DP++, which supports up to 4K UHD, is provided for image output. This means that the MBox-Advanced is also suitable for applications with a monitor connection, for example for visualization or user interfaces.
Which operating systems are supported and can TQ pre-install?
Windows 10 (Standard and Embedded IoT) and Linux (e.g. Ubuntu) are supported. Customer-specific software images can also be pre-installed on the MBox.
