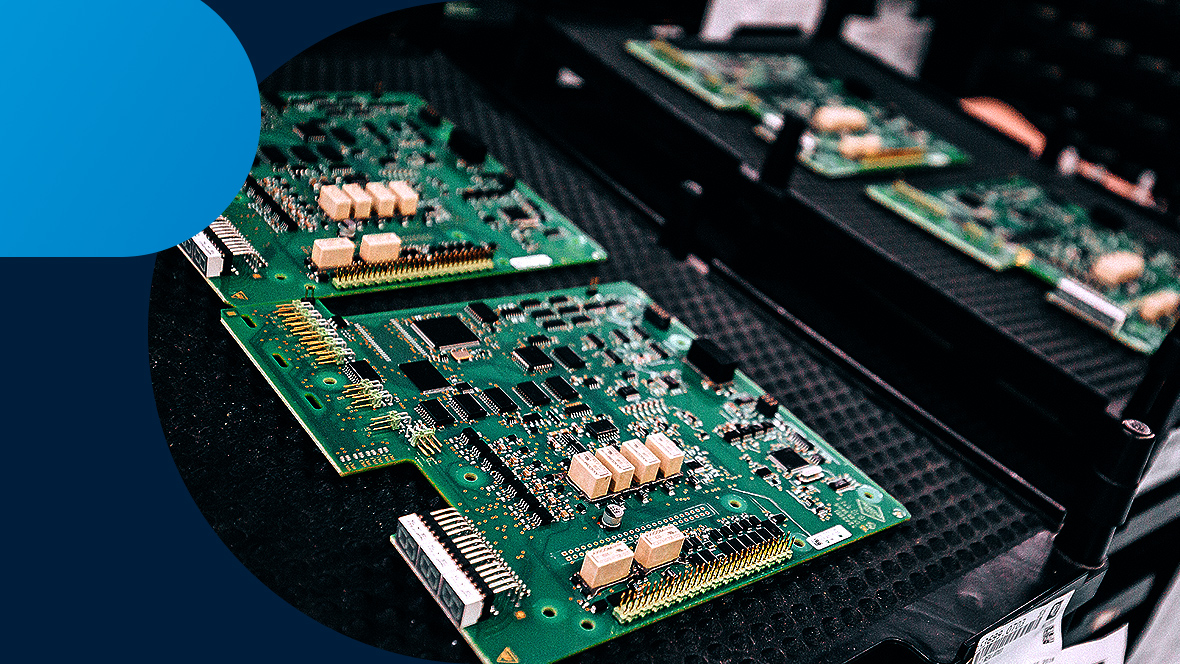

PCB Assembly
The roots of electronics manufacturing: Discover our state-of-the-art SMD lines and THT assembly capabilities for precise, efficient, and high-quality printed circuit boards.
Electronics manufacturing today needs to be one thing above all: flexible.
At TQ, we manufacture customized electronics solutions using state-of-the-art technologies and a high-mix, low-volume approach that adapts to your needs. In close coordination with you, we flexibly define requirements, quantities, and markets. Thanks to our production sites in Europe, China, and the USA, you receive the right solution worldwide in consistently high quality.
Our testing procedures
With end-to-end testing processes and process-accompanying quality control, we guarantee the highest quality and functionality of your systems. We always take economic factors into account, such as industry-specific requirements, annual volumes, product lifecycles, and the complexity of your assemblies. This helps you save costs and avoid issues in later electronics manufacturing.
For complete documentation, all testing procedures are recorded in our traceability system.

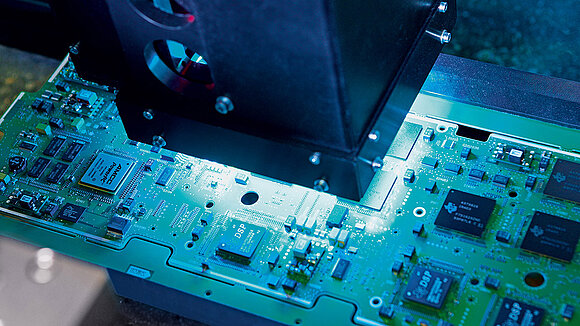

AOI (Automated Optical Inspection) refers to systems that use image processing technology to detect and report defects in component soldering. It is an advanced form of machine vision.
We offer automated optical inspection for solder paste printing (Solder Paste Inspection – SPI), SMD assembly and soldering, as well as THT assembly.
![[Translate to English:] Inline-AOI für SMD E²MS-Test](/fileadmin/assets/shared/content/e2ms/ems_aoi_kamera.jpg)

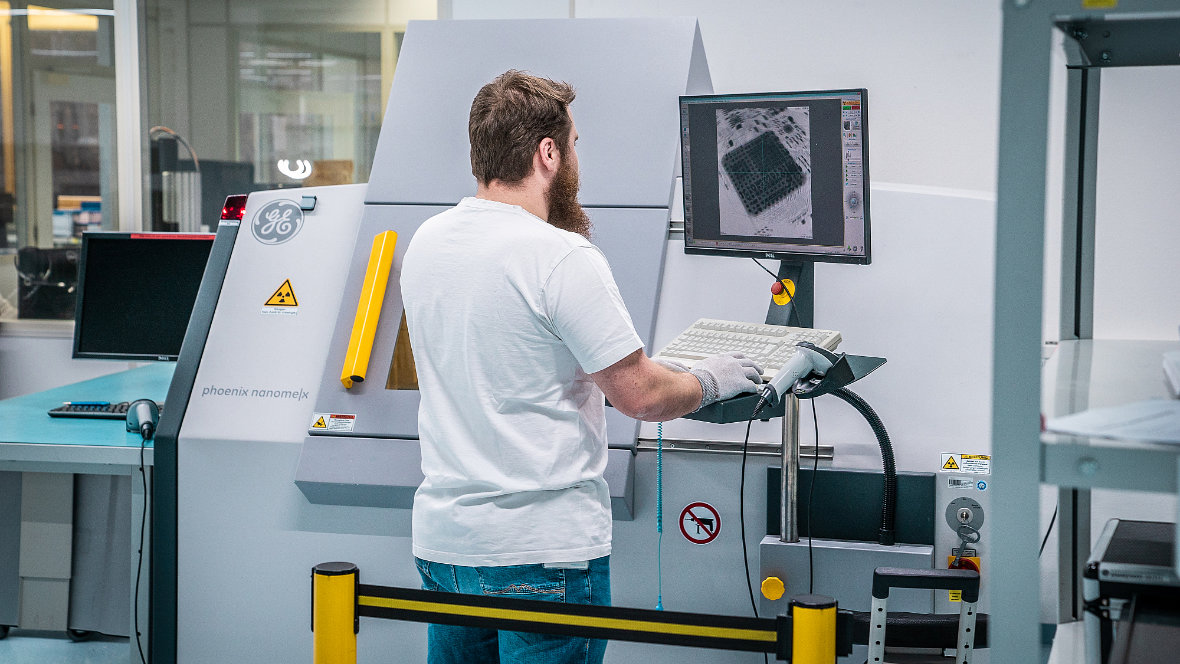

Using manual and automated X-ray inspection, solder joints, components, and printed circuit boards are inspected as needed during transfer to series production, on a sample basis alongside series production, or across the entire series. High-resolution X-ray systems with tomography functionality enable optimal defect detection and analysis.

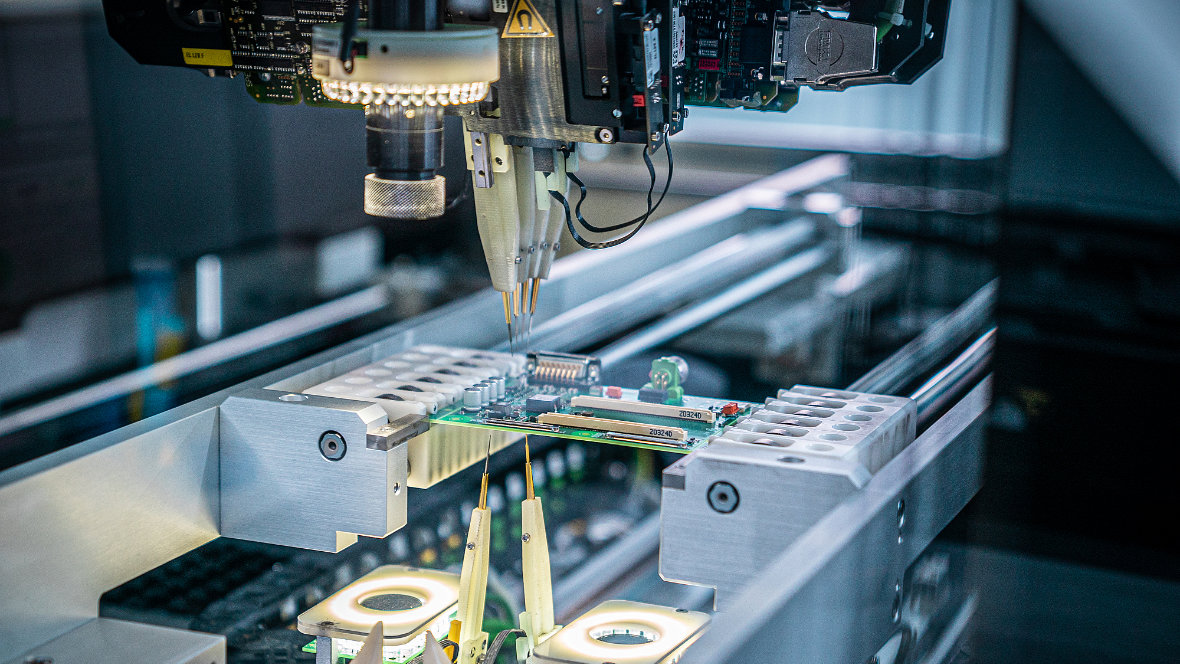

The flying probe test is an adapterless test procedure that can be used particularly flexibly and quickly. Functionally, it corresponds to a Manufacturing Defect Analyzer (MDA) for reliable detection of manufacturing defects. The device under test is contacted via several programmable probes that are precisely guided to the respective test points.
With a total of seven test systems at various locations, flying probe testing makes a significant contribution to TQ’s high manufacturing quality. Powerful systems from the manufacturer SPEA are used, enabling precise measurements within integrated multi-process platforms and additionally supporting optical tests, for example for LEDs.

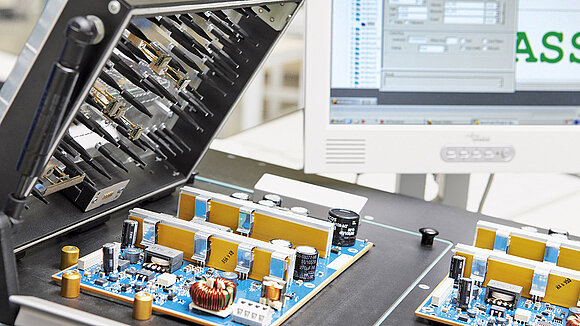

In in-circuit testing, all accessible circuit nodes of the device under test are contacted via a bed of nails. On our systems, up to 500 measurements per second are performed at up to 2,000 test points.
This allows us to verify the correct assembly of components as well as, where possible, their electrical parameters and functionalities, including complex digital components. In addition, in-circuit testing enables onboard programming of memory devices. A total of 20 high-performance test systems at various locations make a major contribution to TQ’s high manufacturing quality.
![[Translate to English:] In-Circuit-Test (ICT) E²MS-Test](/fileadmin/assets/shared/content/e2ms/ems_baugruppe_in_testadapter.jpg)

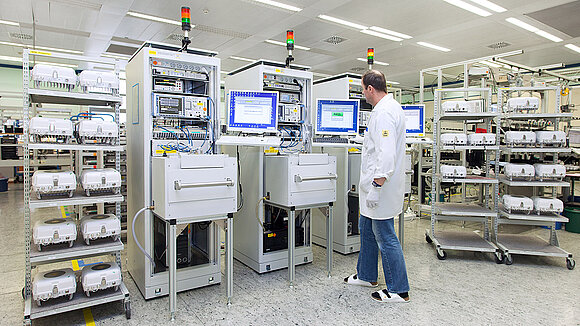

The functional test focuses – as the name suggests – on the functionality of the device under test and is created in close coordination with development, either internally at TQ or with the customer.
Where possible, TQ standard functional test systems are used, of which there are well over 100 at TQ.
In addition, the integration and use of customer-specific, provided test systems is also an established part of TQ’s practice.
![[Translate to English:] Funktionstest (FKT) E²MS-Test](/fileadmin/assets/shared/content/e2ms/ems_testsysteme.jpg)

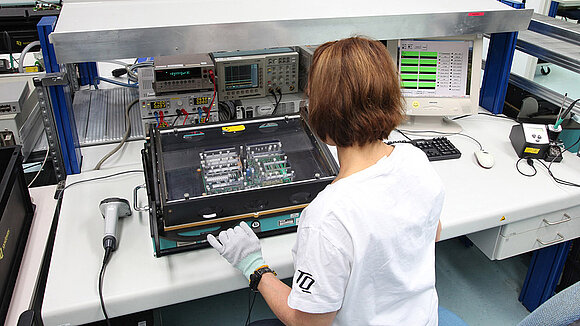

The Boundary Scan Test (BST) can be used as a standalone test method or integrated into other test procedures, such as functional testing. BST is particularly well suited for assemblies with high component density.
In boundary scan testing, a distinction is made between:
![[Translate to English:] Boundary-Scan-Test (BST) E²MS-Test](/fileadmin/assets/shared/content/e2ms/ems_prueffeld.jpg)
An assembly is tested using “electronic nails”. These are located at the pins of boundary-scan-capable components, where digital signals are applied and measured. Circuits can also be programmed via BST. In addition, several assemblies can be tested or programmed simultaneously using BST.

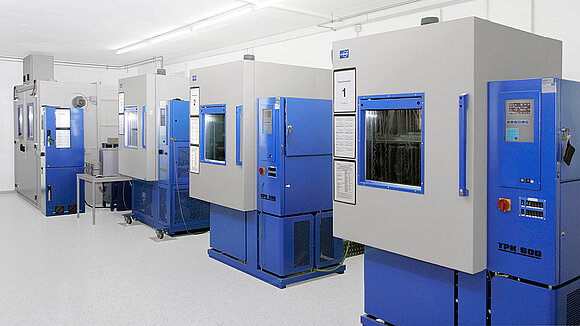

Depending on requirements and customer preferences, we perform burn-in and run-in tests for additional quality assurance. Depending on the specific requirements, these tests are carried out statically or dynamically, with constant or variable temperatures, and actively or passively, with or without operation of the assembly.
Burn-in and run-in tests help identify weaknesses and batch-related issues, reduce early failures, and increase reliability in the field.
![[Translate to English:] Burn-In / Run-In (BI / RI) E²MS-Test](/fileadmin/assets/shared/content/e2ms/ems_klimakammer.jpg)

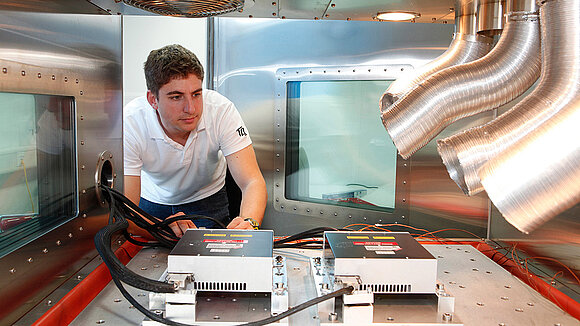

In Highly Accelerated Life Testing (HALT), assemblies and devices are exposed to increased thermal and mechanical stress, including extreme temperatures, strong temperature gradients, and random vibration, in order to identify and optimize weaknesses in the design and the components used during development and product qualification.
The stress limits identified during HALT, including destructive limits, can then be used in series production with a defined safety margin to perform production-accompanying Highly Accelerated Stress Screening (HASS). This makes it possible to detect batch-related issues in individual components or defects in workmanship.
![[Translate to English:] HALT / HASS E²MS-Test](/fileadmin/assets/shared/content/e2ms/ems_halt-hasskammer.jpg)

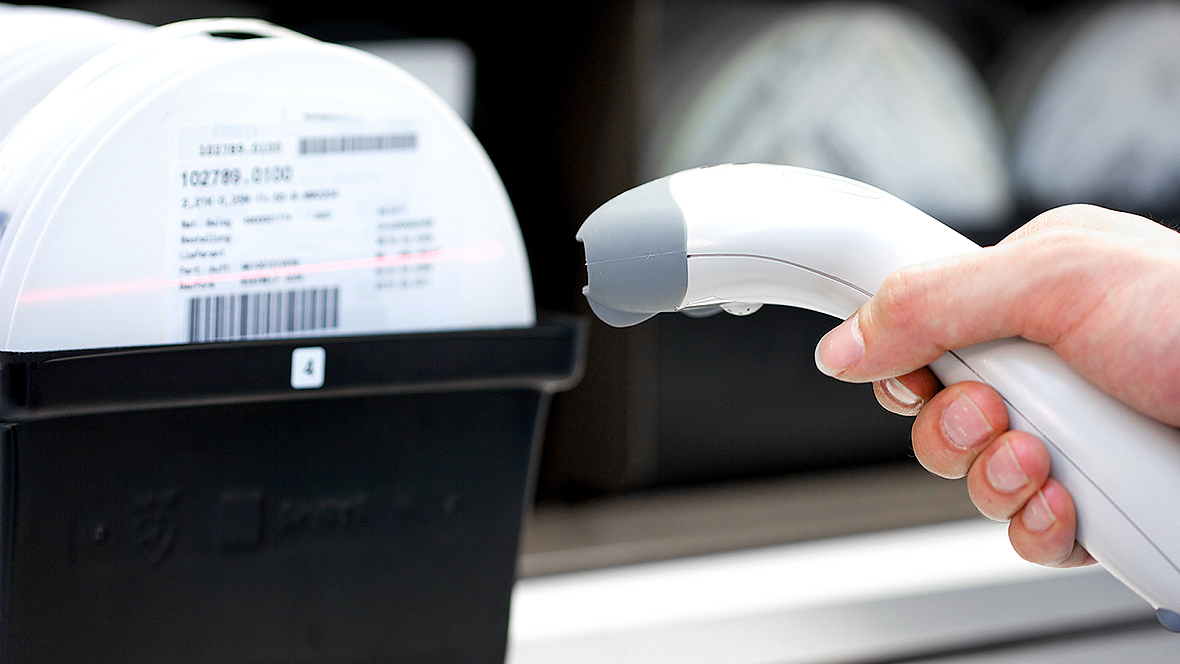

Traceability at the touch of a button
At TQ, you benefit from complete transparency and end-to-end traceability in every phase of electronics manufacturing. Our digital 100 % lifecycle record makes it possible to view all information on materials, processes, and quality for assemblies or components at any time. This creates maximum traceability as well as a high level of control and process reliability.

Certifications in manufacturing
Our electronics manufacturing stands for precision, safety, and quality at the highest level. This is demonstrated by our extensive certifications for particularly demanding and regulated industries.
Our production sites

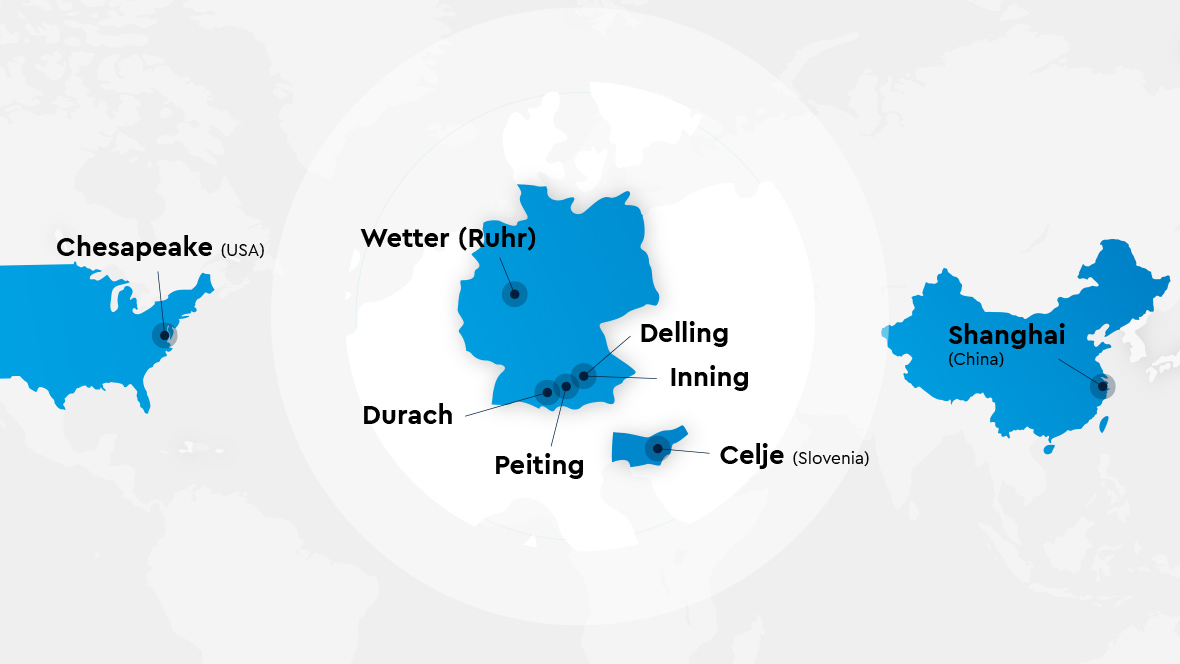

With five production sites in Germany and additional production capacities in Slovenia, China, and the USA, we have a powerful international manufacturing network. Our state-of-the-art, harmonized facilities are equipped with a total of 13 SMD production lines, THT production, assembly lines, coating systems, test fields, and more. This enables us to ensure electronics manufacturing with high capacity, flexibility, and international proximity to our customers.
