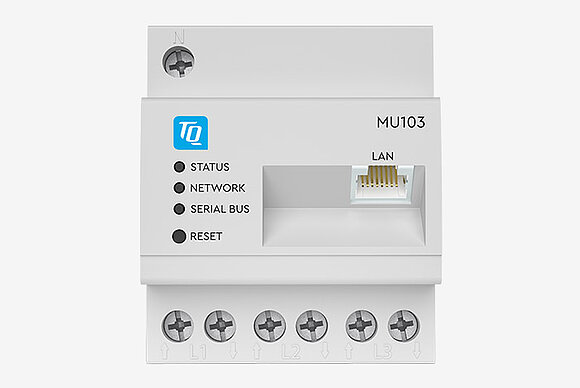

MU103
Metering unit for precise direct measurement at the grid connection point Direct measurement for submetering and energy management to the highest standards.
!NEW!
The MU103 is a compact, high-performance metering unit for direct measurement of energy flows at the grid connection point (NAP). Developed for applications in the smart home, commercial and industrial sectors, it provides precise measurement data for consumption and feed-in - the basis for efficient energy management in accordance with ISO 50001.
Thanks to its flexible connectivity and secure communication design, the MU103 is ideally suited for integration into home energy management systems (HEMS) - whether as a stand-alone gateway or embedded in systems such as inverters.
The advantages of the MU103
Areas of application for the MU103
- Direct measurement for smart homes and small commercial enterprises
- Submetering for energy flow analysis
- Data acquisition for HEMS systems
- Energy optimization at the grid connection point
- OEM integration in energy management solutions
Functions and Highlights
Direct measurement up to 63 A (3-phase)
For supply and feed-in - without external sensors
Precise 4-quadrant meter
Measurement of active power, reactive power and energy flows
Versatile connectivity
Modbus RTU/TCP/TLS, Sunspec, MQTT (roadmap), RS-485, LAN, WLAN (plan)
Simple web configuration
via HTTPS, with role rights and encrypted communication
OTA updates & mDNS support
Central administration and simple integration
Cybersecurity
CRA-ready, developed in accordance with DIN EN IEC 62443-4-2
OEM-capable & customizable
Three product variants: R / LR / LR+, customer-specific adaptations
Compact & efficient
Only 4 HP wide, < 2 W power consumption

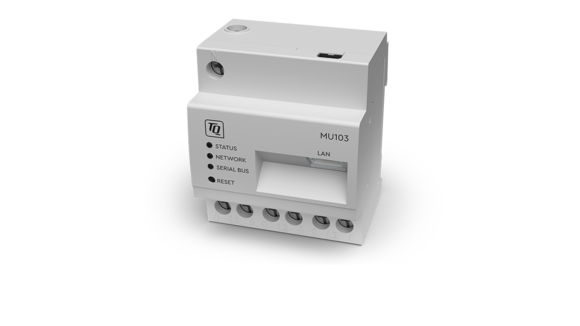

Security and future-proof
The MU103 meets the highest cybersecurity requirements and is already prepared for the requirements of the Cyber Resilience Act (CRA). Thanks to OTA update capability, encrypted protocols and role-based web access, the MU103 offers maximum data security - even in sensitive applications.

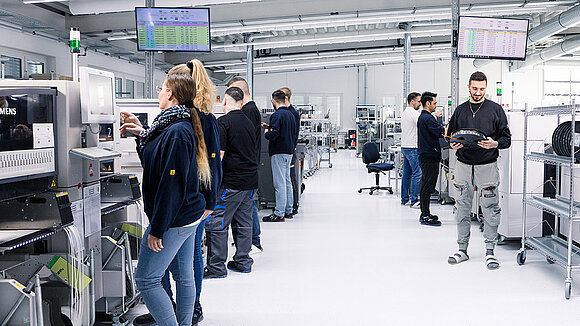

Made in Germany - with the TQ factor
As part of the TQ Group, the MU103 is manufactured entirely in Germany - fully automated, scalable and to industrial quality standards. This means you benefit from a reliable supply chain, short distances, direct communication and an experienced development partner with over 1 million energy measurement systems delivered.
