Exoskeletons The modern form of relief

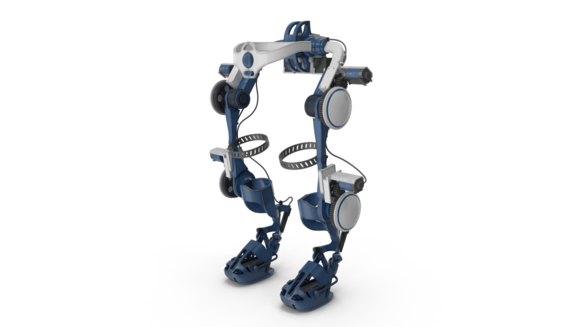

Exoskelett Modell schräg

Exoskeletons are literally on the rise. However, this is not a cause for alarm, but a reason for confidence, because they make many tasks much easier and less physically demanding. In addition to work-related aspects, exoskeletons can also be used sensibly in the medical field, for example as a walking aid for people who would otherwise no longer be able to move selectively or completely. Exoskeletons can be used intralogistically for lifting heavy objects such as packages, pallets, machine parts. In addition, physically hard-working craftsmen will benefit in the future with strength-sapping processes such as overhead work.

With the combination of PikeOS, PikeOS for MPU and a system-on-a-chip (SoC) module from TQ Systems' i.MX8 series, such as the TQMa8Xx, embedded systems for exoskeletons can be conveniently realized. The TQMa8Xx offers high flexibility, operationally reliable ECC memory, outstanding scalability of computing power with enough reserves for all eventualities, maximum energy efficiency, and digital signal processing (DSP) for voice control.

The real-time operating system and hypervisor PikeOS provides the basis here for separating applications in the embedded system functionally safely in space and time. For example, mixed-critical motion control can run in parallel with speech processing and performance data monitoring without one application interfering with the other. Functional safety can be achieved via SYSGO's Certification Kits, which are available for PikeOS for the IEC 62304 Medical Safety standard and the IEC 61508 Industry Safety standard, among others. An it-secure gateway can run on another PikeOS partition on a core. With its pre-certification against the Common Criteria security standard at level EAL 5+, the PikeOS Separation Kernel (ver. 5.1.3.) also provides cybersecurity at the highest level.

On customer request after appropriate adjustment by means of Board Support Package, PikeOS for MPU can run on the microcontroller (Arm Cortex-M4), which is located on the heterogeneous TQMa8Xx, as a safely separated partition. PikeOS for MPU takes over important tasks, where one prefers a microcontroller over a CPU for reasons of higher-level safety or manageability, among other things. This can be for example the deterministic processing of large amounts of data.

With the integrated development environment CODEO such embedded systems, which make highest demands on safety, determinism or real-time and consolidation, can be created within one tool. PikeOS and PikeOS for MPU do not require a large toolchain, but find a common roof on the Eclipse-based IDE CODEO.

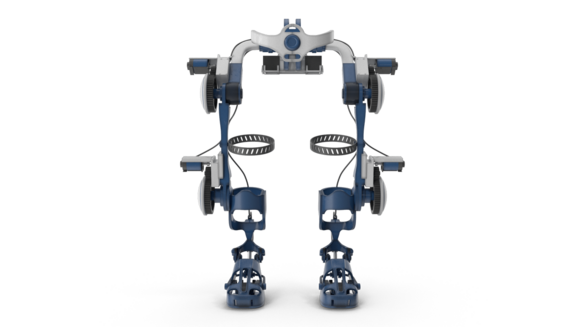

Exoskelett Modell frontal

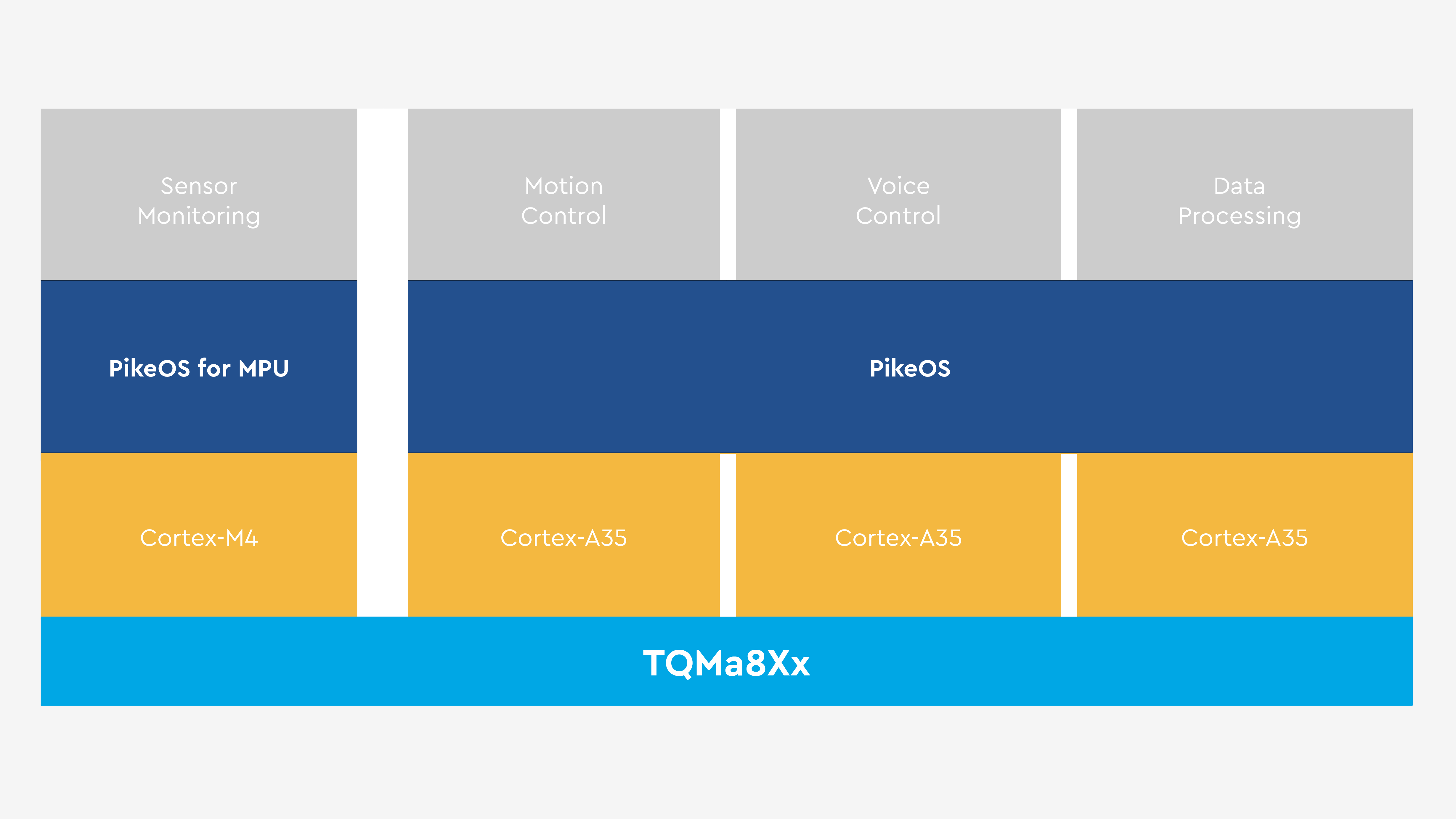

A possible systematic example architecture could include the following applications:

Use Case SYSGO Tabelle TQMa8Xx

For further (application) possibilities of the PikeOS family, please contact SYSGO.


We will be happy to advise you on the potential of our embedded modules.
