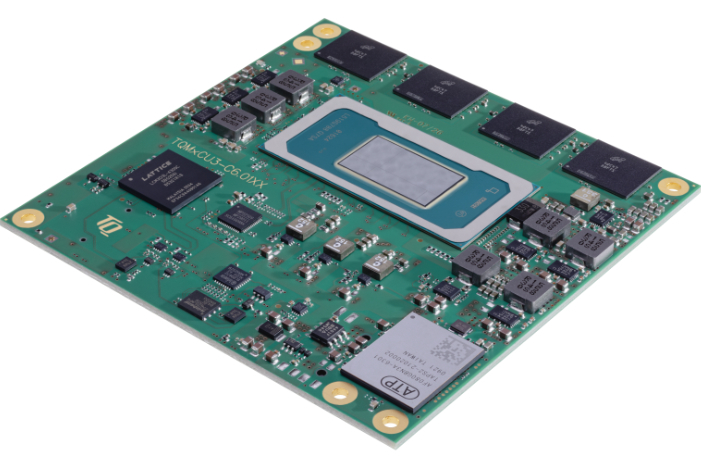

Embedded Modul TQMxCU3-C6 COM Express® Compact Type 6 Module with Intel® Core™ Ultra Series 3 Processors
Codename: Panther Lake
Embedded Modul TQMxCU3-C6 COM Express® Compact Type 6 Module with Intel® Core™ Ultra Series 3 Processors
Codename: Panther Lake
- Intel® Core™ Ultra 9, Intel® Core™ Ultra 7, and Intel® Core™ Ultra 5
- New chiplet technology for optimized power balance and improved power efficiency
- High bandwidth with up to 16 PCIe lanes
- Advanced graphics capabilities: up to four simultaneous high-resolution display outputs with brilliant graphics performance and AI capabilities
- 2.5 Gigabit Ethernet, ultra-high-speed PCIe and I/O
- Embedded and industrial use conditions with real-time support and 24/7 operation
- Extended temperature range options (down to -40°C)
The TQMxCU3-C6 is a powerful COM Express® Compact Type 6 embedded module based on the latest Intel® Core™ Ultra Series 3 processors. It is designed specifically for demanding edge computing and AI applications, combining high computing performance with optimized energy efficiency. Intel’s modern chiplet architecture and hybrid technology enable configurations with up to 16 CPU cores. The CPU is complemented by integrated Intel® graphics and a dedicated NPU, which accelerates AI workloads directly on the system.
For high data throughput, the module supports fast DDR5 memory as well as modern high-speed interfaces such as PCIe Gen4, USB 3.2 and 2.5 Gigabit Ethernet. The integrated graphics also support up to four independent high-resolution displays, making the module well suited for demanding visualization and HMI applications. Overall, the TQMxCU3-HPCM provides a compact and powerful platform for industrial, medical, security-related and communication applications where computing performance, graphics capabilities and AI acceleration are required in a space-saving form factor.
CPU/Processor data
CPU/Processor:
- Intel® Core™ Ultra 7 processor 365 (4/0/4, 4,7GHz, 12M, 4Xe, 12 PCIe, vPro)
- Intel® Core™ Ultra 7 processor 355 (4/0/4, 4,6GHz, 12M, 4Xe, 12 PCIe)
- Intel® Core™ Ultra 5 processor 335 (4/0/4, 4,5GHz, 12M, 4Xe, 12 PCIe, vPro)
- Intel® Core™ Ultra 5 processor 325 (4/0/4, 4,4GHz, 12M, 4Xe, 12 PCIe)
- Intel® Core™ Ultra 5 processor 332 (2/0/4, 4,3GHz, 12M, 2Xe, 12 PCIe, vPro)
- Intel® Core™ Ultra 5 processor 322 (2/0/4, 4,3GHz, 12M, 2Xe, 12 PCIe)
- Intel® Core™ Ultra 9 processor 386H (4/8/4, 4,8GHz, 18M, 4Xe, 20 PCIe, vPro)
- Intel® Core™ Ultra 7 processor 366H( 4/8/4, 4,7GHz, 18M, 4Xe, 20 PCIe, vPro)
- Intel® Core™ Ultra 7 processor 356H (4/8/4, 4,6GHz, 18M, 4Xe, 20 PCIe)
- Intel® Core™ Ultra 5 processor 336H (4/4/4, 4,5GHz, 18M, 4Xe, 20 PCIe, vPro)
- Intel® Core™ Ultra X9 processor 388H (4/8/4, 5,0GHz, 18M, 12Xe, 12 PCIe, vPro)
- Intel® Core™ Ultra X7 processor 358HR (4/8/4, 18M, 12Xe, 12 PCIe, vPro, FuSa)
- Intel® Core™ Ultra X7 processor 368H (4/8/4, 4,9GHz, 18M, 12Xe, 12 PCIe, vPro)
- Intel® Core™ Ultra X7 processor 358H (4/8/4, 4,7GHz, 18M, 12Xe, 12 PCIe)
- Intel® Core™ Ultra 5 processor 338H (4/4/4, 4,6GHz, 18M, 10Xe, 12 PCIe, vPro)
- Intel® Core™ Ultra 7 processor 365RE (4/0/4, 12M, 4Xe, 20 PCIe, vPro, I-Temp, FuSa)
- Intel® Core™ Ultra 5 processor 335RE (4/0/4, 12M, 4Xe, 20 PCIe, vPro, I-Temp, FuSa)
- Intel® Core™ Ultra 7 processor 366HRE (4/8/4, 18M, 4Xe, 20 PCIe, vPro, I-Temp, FuSa)
- Intel® Core™ Ultra 5 processor 336HRE (4/4/4, 18M, 4Xe, 20 PCIe, vPro, I-Temp, FuSa)
Memory
LPDDR5x:
- 16 / 32 / 64 GB, Dual Channel
Graphics
Display:
- up to 3x DDI (DP 1.4b / HDMI 2.1) (up to 8K)
- 1x dual channel LVDS or eDP (1.4b) (up to 4K)
- Up to 4 independent display outputs
Communication interfaces
Ethernet:
- 1x 2.5 Gigabit Ethernet (Intel i226)
USB:
- up to 4x USB 3.2 Gen2 (up to 10 Gb/s)
- 8x USB 2.0
Other interfaces
MIPI:
- MIPI-CSI (1x 2 lanes / 1x4 lanes) on extra pin connector (configuration option)
UART:
- 2x UART
PCIe:
- 4x PCIe Gen4 (up to 16 Gb/s per Lane) (div. configurations)
- 8x PCIe (PEG, up to 16 Gb/s per Lane) (x8 or x4/ x4)
LPC:
- 1x LPC/eSPI
I2C:
- 1x I2C
SMBus:
- 1x SMBus
SPI:
- 1x SPI (for external UEFI BIOS flash)
GPIO:
- 8x GPIO through TQ-flexiCFG
Other functions
TPM:
- TPM 2.0 (SLB9672) (configuration option)
Board Controller:
- TQMx86 board controller with watchdog and TQ-flexiCFG<br />Temperature monitor and fan control
General data/basic data
Dimensions:
- 95 mm x 95 mm
Plug-in System:
- COM Express® Compact, type 6
Temperature range:
- Standard temperature: 0°C…+60°C
- Extended temperature: -40°C … +85°C (H484 ET and H404E ET CPU versions)
Power supply:
- 8.5 ... 20 V, 3 V Battery for RTC
Power consumption:
- typ. 12 - 45 W / max. 90 W (preliminary)
OS-Support
OS Support:
- Windows 11 IoT Enterprise LTSC
- BSP for Linux (Yocto/ Ubuntu)
Download Subscription
With the free download subscription, registered users receive automatic e-mail notifications as soon as there are new downloads for this TQ product. How-to-guide
TQMxCU3-C6-AA
Intel® Core™ Ultra 5 325 (4P+0E+4LPE, up to 4.4 GHz, 12 MB, 4Xe, 12 PCIe), 16GB LPDDR5, 2xDP++, eDP, TPM 2.0, C-Temp.
TQMxCU3-C6-AB
Intel® Core™ Ultra 7 356H (4P+8E+4LPE, up to 4.6 GHz, 18 MB, 4Xe, 20 PCIe), 16GB LPDDR5, 2xDP++, eDP, TPM 2.0, C-Temp.
