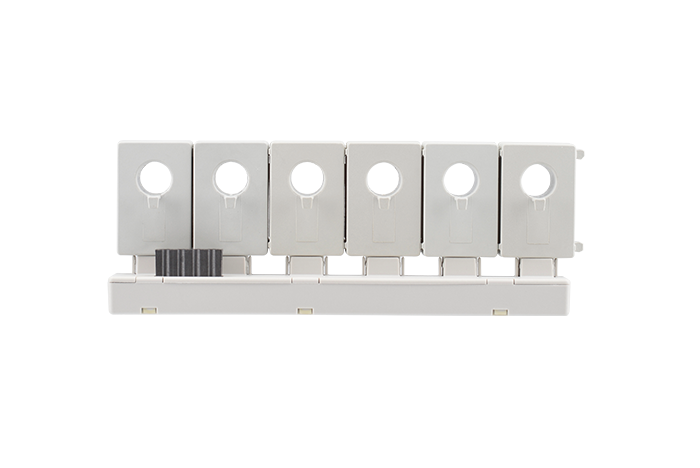

Product EB200 Sensorbars

EB200

Sensor bar for easy and space-saving installation above the circuit breaker for energy monitoring.

The advantages of the EB200

Space-saving

Easy retrofitting of existing circuit breakers

Flexible sizes

Record 3, 6, 9 or 12 measuring points with one sensor bar

Cost-effective

Fast installation and low costs per measuring point

Up to 96 measuring points

In conjunction with the Energy Manager EM420

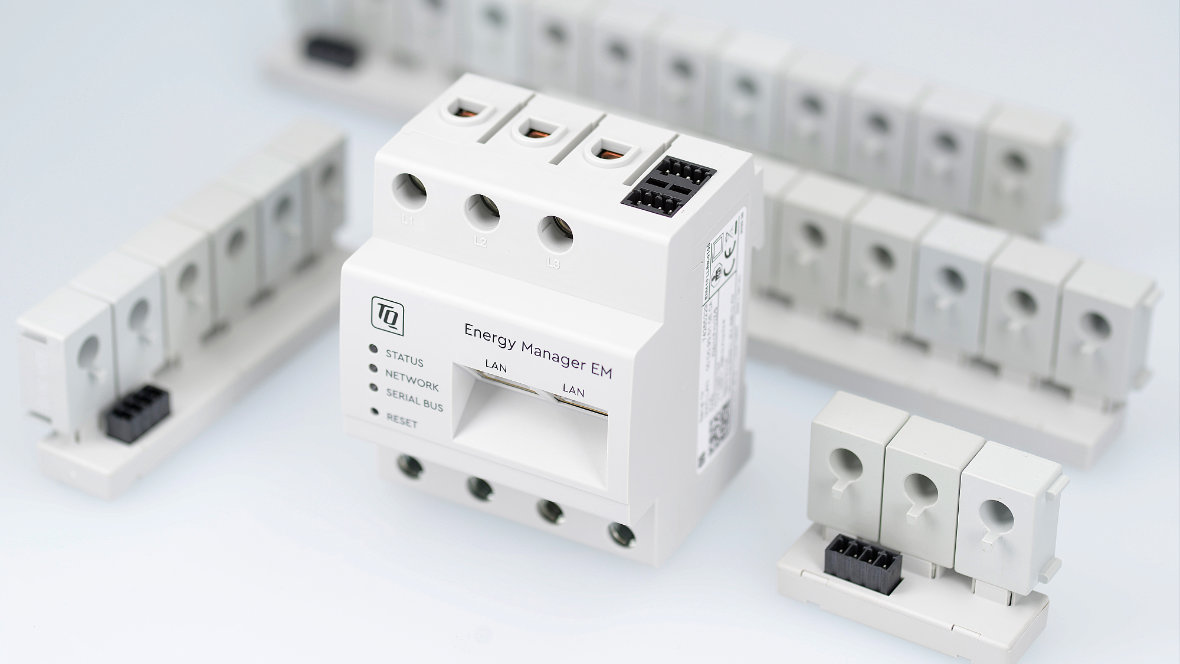

Energy Manager with sensor bars

Introduction to Energy Monitoring

In combination with the Energy Manager EM420, record, save and visualize up to 96 measuring points.

Flexible Grouping & Visualization

Keep an eye on energy flows through plant modeling as a compact system for energy monitoring.

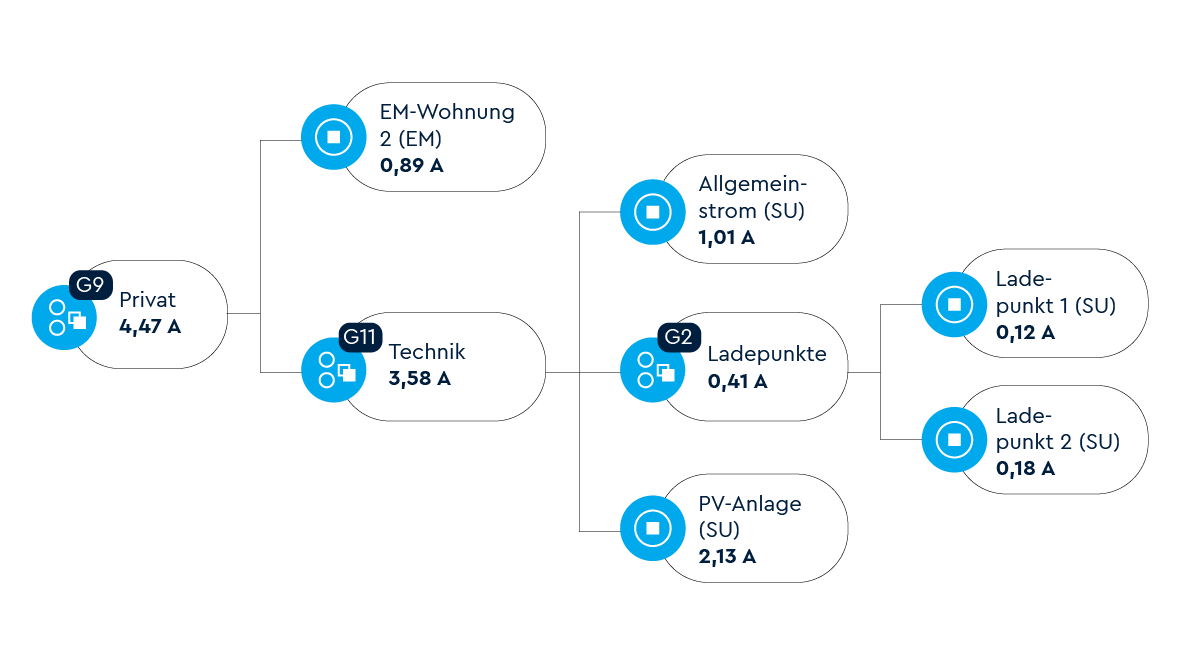

Schematic diagram of the sensor bars from TQ

Downloads EB200

Installation instructions

AUT Sensorbar IADE Rev0300 Mail (384 KB, pdf)

Declarations of conformity

EB2xx.EU Konformitaetserklaerung 2019 07 09 DE (470 KB, pdf)
