Interested? Contact us for a more information about our i.MX 8 portfolio!
Discover the i.MX 8 portfolio from TQ
Powerful multi-core, feature-rich platforms
The i.MX 8 CPU series offers a very broad and scalable spectrum for applications with its various versions. i.MX 8 offers everything from cost-efficient performance and embedded consumer and industrial applications to comprehensive audio functions and demanding graphics and virtualization tasks. TQ offers several modules, depending on the user's application requirements.

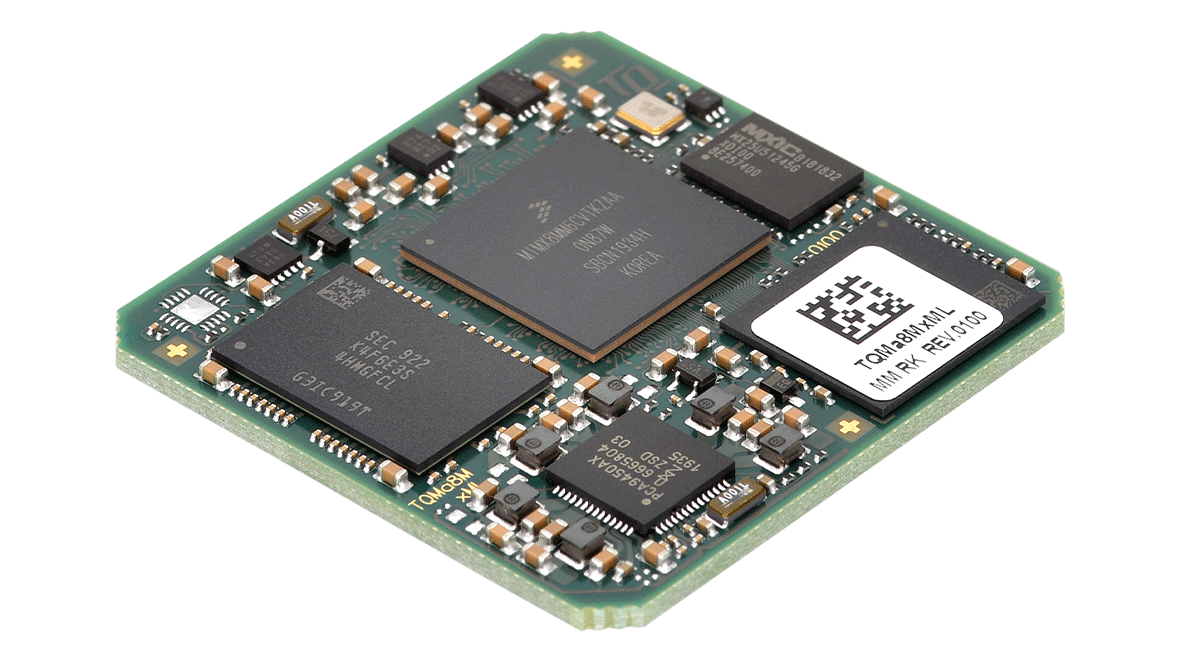

TQMa8MxML
Embedded Cortex®-A53 module based on i.MX 8M Mini with enhanced Audio properties.
- Advanced Audio properties
- Integrated Cortex® M4
- High-speed communication via 1x Gbit Ethernet
- 1x PCle and 2x USB 2.0 interface
- Low power consumption (typ. 4 W)
- Integrated security functions

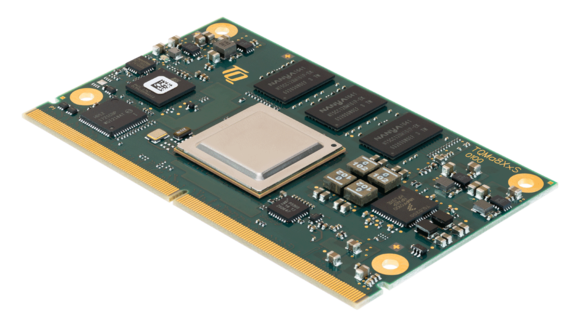

TQMa8XxS
Embedded Cortex® A35 SMARC 2.0 module based on i.MX 8X with high computing power combined with high-speed interfaces.
- Graphics with 4K support
- DSP for audio processing
- High-speed communication via 2x Gigabit, Ethernet, 1x PCle and 1x USB 3.0 interface
- Low power consumption (typ. 4 W)
- Integrated 1x Cortex M4 CPU (Real Time / Security)

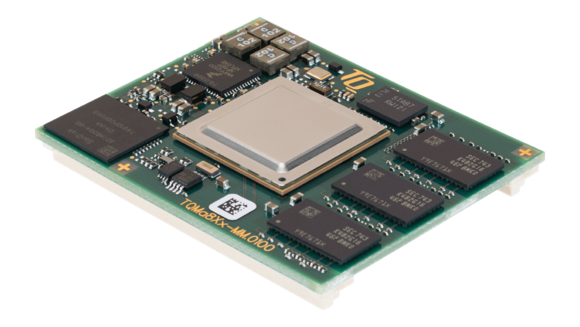

TQMa8Xx
Embedded Cortex®-A35 module based on i.MX 8X with high computing power combined with high-speed interfaces.
- Graphics with 4K support
- Security functions
- Integrated 1x Cortex M4 CPU (Real Time / Security)
- Low power consumption (typ. 4 W)
- DSP for audio processing
- 3x CAN FD
TQMa8Mx
Embedded Cortex®-A53 module based on i.MX 8M with extended audio and video functions.
- Graphics with VP9/4K HDR10 support
- Security functions
- Integrated 1x Cortex M4 CPU (Real Time / Security)
- Low power consumption (typ. 4 W)
- High-speed communication via 1x Gbit Ethernet, 2x PCle and 2x USB 3.0 interface

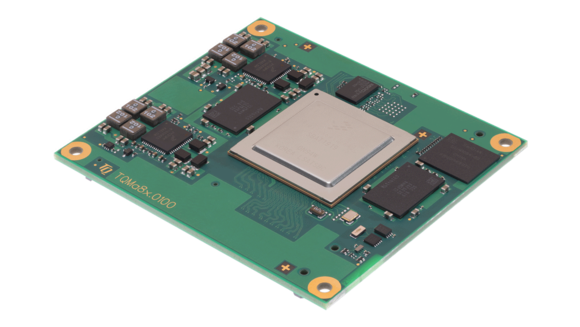

Embedded Module TQMa8x
Embedded Cortex®-A53 / A72 module based on i.MX 8 with enhanced performance and graphics properties.
- Graphic with 4K Support / Quad Core
- Full chip hardware virtualization
- High-speed communication via 2x Gbit Ethernet, 2x PCIe, 1x SATA and 1x USB 3.0 interface
- Low power consumption (typ. 10 W)
- Integrated 2x Cortex®-M4 CPU (Real Time / Security)
- 3x CAN FD
- Integrated security functions
Our USPs
- Unbeatable long-term availability
- Robustness for all applications
- The most comprehensive range of modules on the market
- A comprehensive design and support of an E²MS manufacturer
- Full design freedom, as all processor functions are fully accessible
- x86 for tough industrial use
