Energy monitoring TQ-Energy monitoring in industrial applications

use of energy

Energy monitoring and consumption profile at a glance

With our TQ Automation products, we make it possible for you to monitor and document your entire electricity usage. The data enables you to carry out on-going optimization and save a lot of energy easily by employing targeted energy management measures.

The Energy Manager: Metering technology, data archive, IT and automation – all in one

The ideal combination of the Smart Meter function with integrated memory, web server and LAN / WLAN interface makes TQ Automation ideal for collecting and analyzing data precisely, and also includes a long-term archive. It is easy to integrate into the existing IT infrastructure and can be installed conveniently in the control cabinet or distribution cabinet.

Built-in functions that can be switched on and off ensure a high degree of automation for data transmission. Modbus TCP or RTU allow fast integration of the device into other software applications.

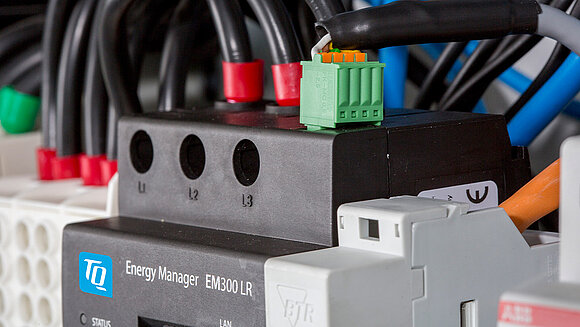

EM Milieu image

Here is how it works:

The TQ Automation Energy Manager is a four-quadrant meter with built-in processor and high connectivity, that also features two gigabytes of internal storage capacity.

Go to Energy Manager

Space-saving installation

Thanks to its unique, compact design, the Energy Manager can be quickly and easily integrated into existing control cabinets. It is supplemented by single-phase sensor technology, the sensor bars, that enable you to realize up to 96 measuring points per Energy Manager.

To the Sensor bars

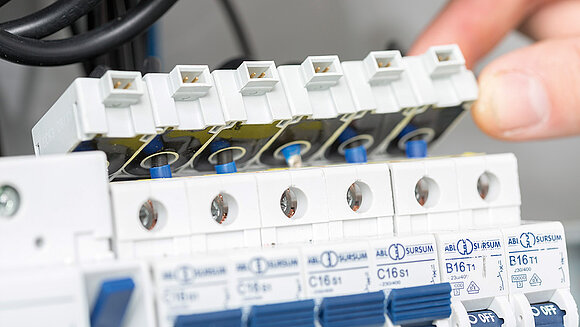

EM Sensor bars

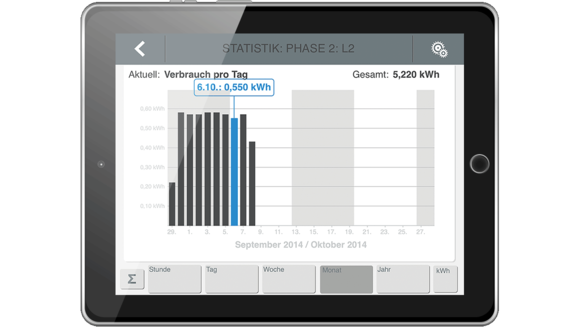

Visualization

Clear and intuitive visualization

For currents above 63 amps, the current consumption can also be recorded and visualized using external transformers.

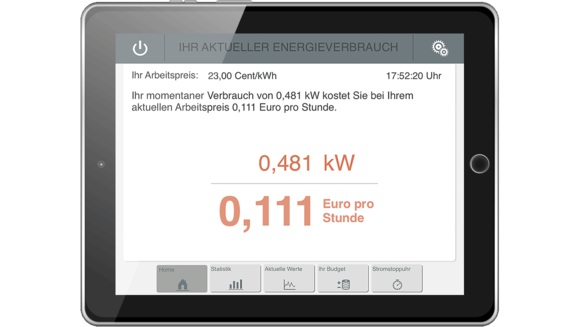

With the B-Studio software you can easily visualize your measurement data on any end device. In real time you can see exactly what consumption is taking place at the individual measuring points – that means: complete control.

The data is also archived centrally via the corresponding software

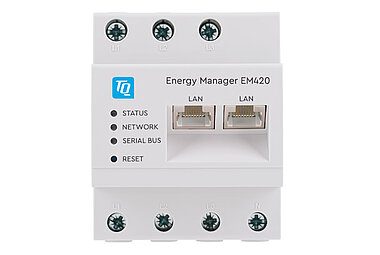

EM420

4-quadrant meter. Monitor, document, automate.

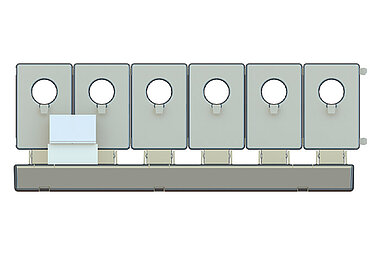

Sensor bars

Modular sensor technology for the construction of measuring systems.

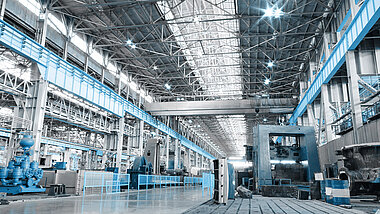

Load management

Seamless overview of energy consumption and monitoring of load peaks.
